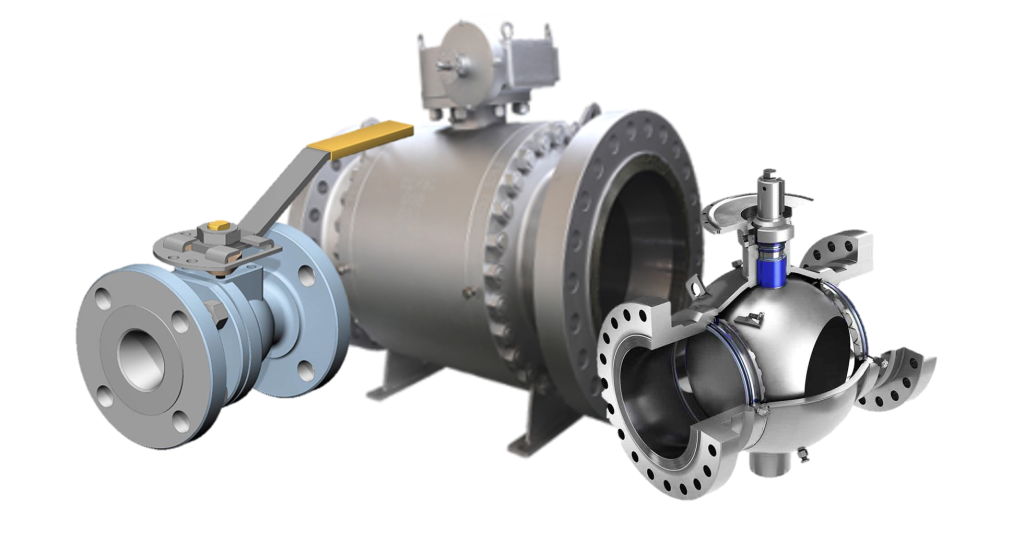

ball valves

Engineered Ball Valves (Trunnion)

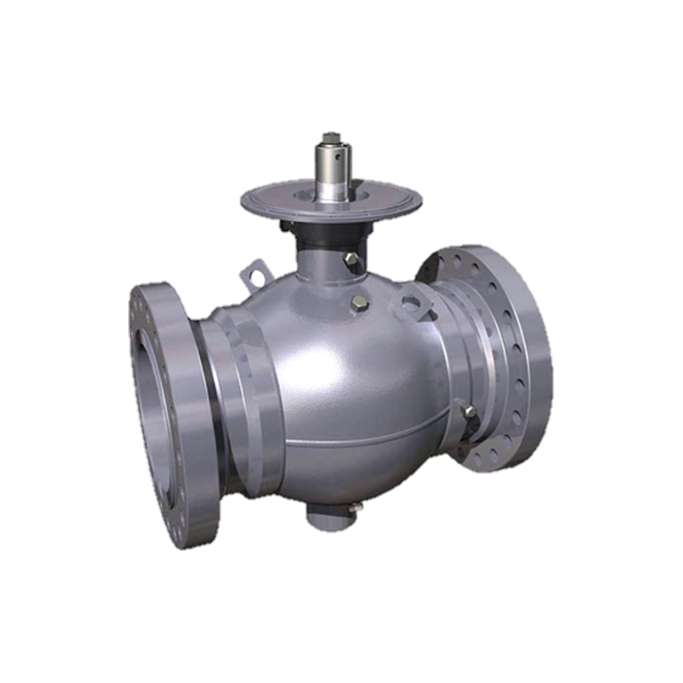

Fully Welded Body

Trunnion Mounted Fully Welded Body

  • Sizes: 1″-42″
  • Pressure Rating: ANSI 150-1500
  • Body: A350LF2 Hot-Rolled plate body or forged.
Learn More
Contact us

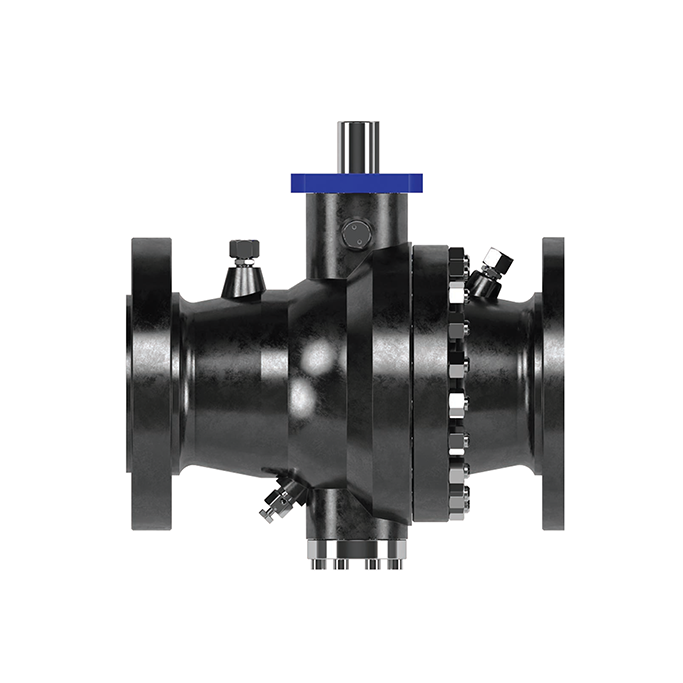

Bolted Body

Trunnion 2 & 3-Piece Bolted Body Design

  • Sizes: 1″-42″
  • Pressure Rating: ANSI 150-2500
  • Body: A350LF2 / A350LF6 / A316SS
Learn More
Contact us

Floating Ball Valves

3-Piece Threaded Body Design

  • Sizes: 0.5″-3″ (full port) /  0.75”-4” (reduced port)
  • Pressure Rating: ANSI 150-2500 / WOG: 1000-6000psi
  • Body: A350 LF2/ A419SS / 316SS
Learn More
Contact us

Trunnion Mounted Fully Welded Body

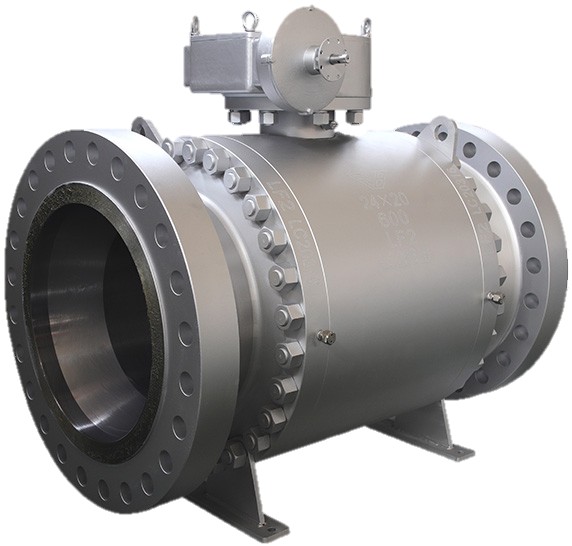

Bolted Body

    • Sizes: 1″-42″
    • Pressure Rating: ANSI 150-2500
    • Body: A350LF2 / A350LF6 / A316SS
    • Trim:
      • Ball / Stem: ENP 1mil / 3mil or Hard Chrome 1mil / 3mil or Stainless Steel
      • Seat Insert: Devlon, PTFE, Nylon, PEEK Insert, or Metal to Metal
      • Seat Design: SPE, DPE to meet DB&B or DBI-1 or DBI-2
      • Note: Special trims available
    • End Connections: Flanged, Ring Type Joint, Welded Ends (PUPs can be welded on upon request)
    • Operators: Gear, Lever, Automatic Actuators
    • Standards:
      • Fugitive Emissions ISO15848,
      • Firesafe API6FA
      • API6D Monogram
      • ANSI B16.34
      • NACE MR0175
      • Testing: API 6D / API 598 / ASME Section VIII. Extended-hr test with chart available
      • NDE packages available

3-Piece Threaded Body Design

  • Sizes: 0.5″-3″ (full port) /  0.75”-4” (reduced port)
  • Pressure Rating: ANSI 150-2500 / WOG: 1000-6000psi
  • Body: A350 LF2/ A419SS / 316SS
  • Trim:
  • Ball: A351 Gr. CF8M
  • Stem: Anti blow-out A108 plated
  • Seat Insert: Teflon, Delrin, PEEK, Devlon
  • End Connections: threaded, SW, BW or  Flanged
  • Operators: Gear, Lever
  • Standards:
  • Firesafe API607 4th ed.
  • CE Mark number
  • ANSI B16.34
  • NACE MR0175
  • CSA Z245.15 steel valves
  • Testing: API598
  • Extended-hr with chart available
