Valve Automation

An automated valve is an integrated system that allows to automatically control the flow of fluids through a pipe.

This system is composed of three large blocks of components that interact both mechanically and through the usage of physical properties such as power, pressure, flow-capacity, speed and temperature, that allow to operate all of the involved instruments.

  • The valve
  • The Actuator
  • The control System

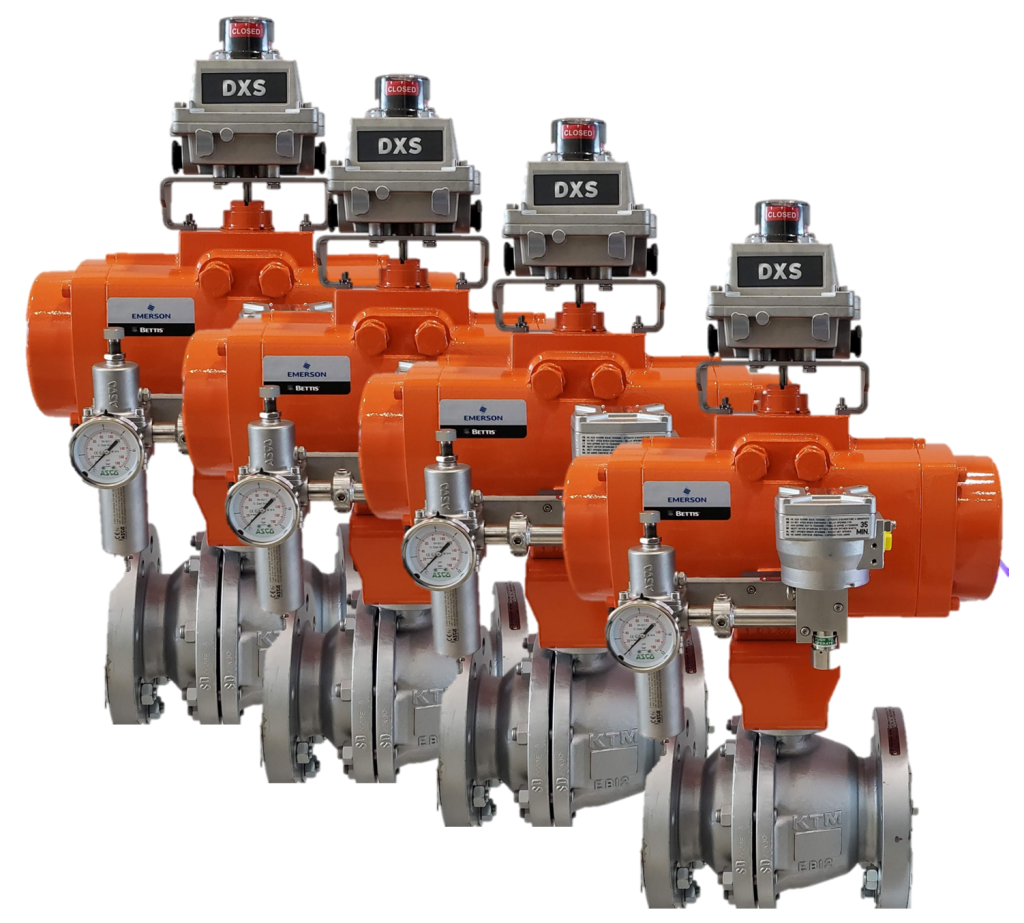

WIKI VALVES ® AUTOMATED BALL VALVES

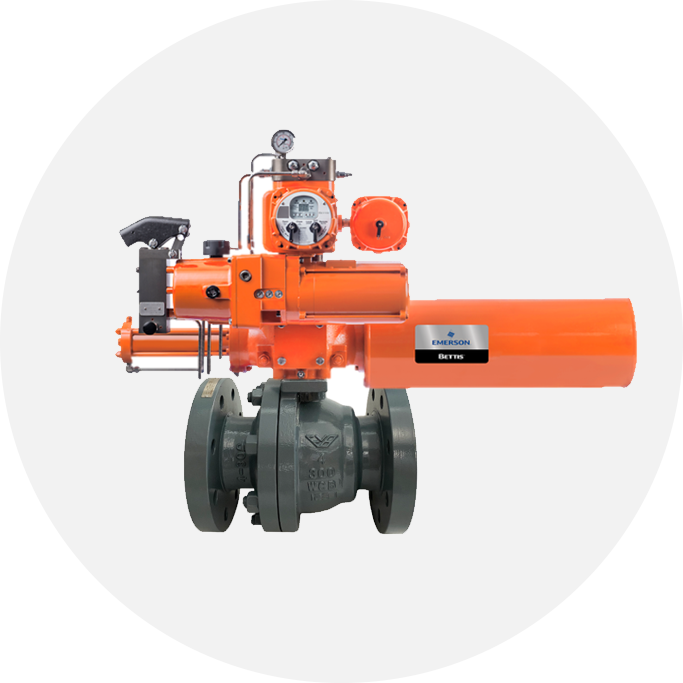

The most standard arrangement is designed as shown in the sketch composed as follows:

  • Ball Valve
  • Low Pressure Pneumatic Actuator
  • Filter Regulator
  • Relief Valve
  • Flow Control Valve
  • Solenoid Valve
  • Limit Switch
  • Bleed Valve

CLICK IMAGE TO WATCH VIDEO

Automation and Integration Process & Scope

WIKI VALVES ®  can offer the complete automated valve package, including:

  1. All components
  2. Control system design (for customer approval)
  3. 2D / 3D CAD (for customer approval)
  4. Automation & Integration
  5. Extended-hour hydrotests with a chart per API6D/API598
  6. Function Test (Witnessed if required), FAT or SAT or Both
  7. Documents Dossier, including Certificate of Compliance of the whole assembly.


If it is the customer’s preference, components can be free issued to WIKI VALVES ®  and the the scope would be just the labor (activities from 2-6)

Field Service - Valve Automation scope

WIKI VALVES ®  can offer field services to include:

  1. Valve Actuator Troubleshooting

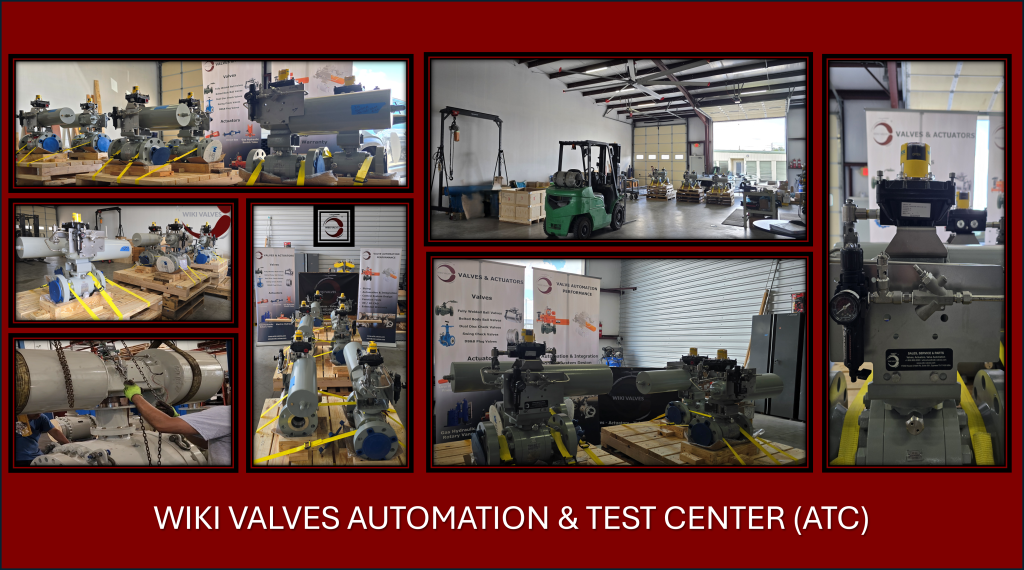

  2. Actuator Mods in the field (or at our Automation & Test Center)
  3. Actuator repair or revamps
  4. Installation Supervision (of valves/actuators/controls)
